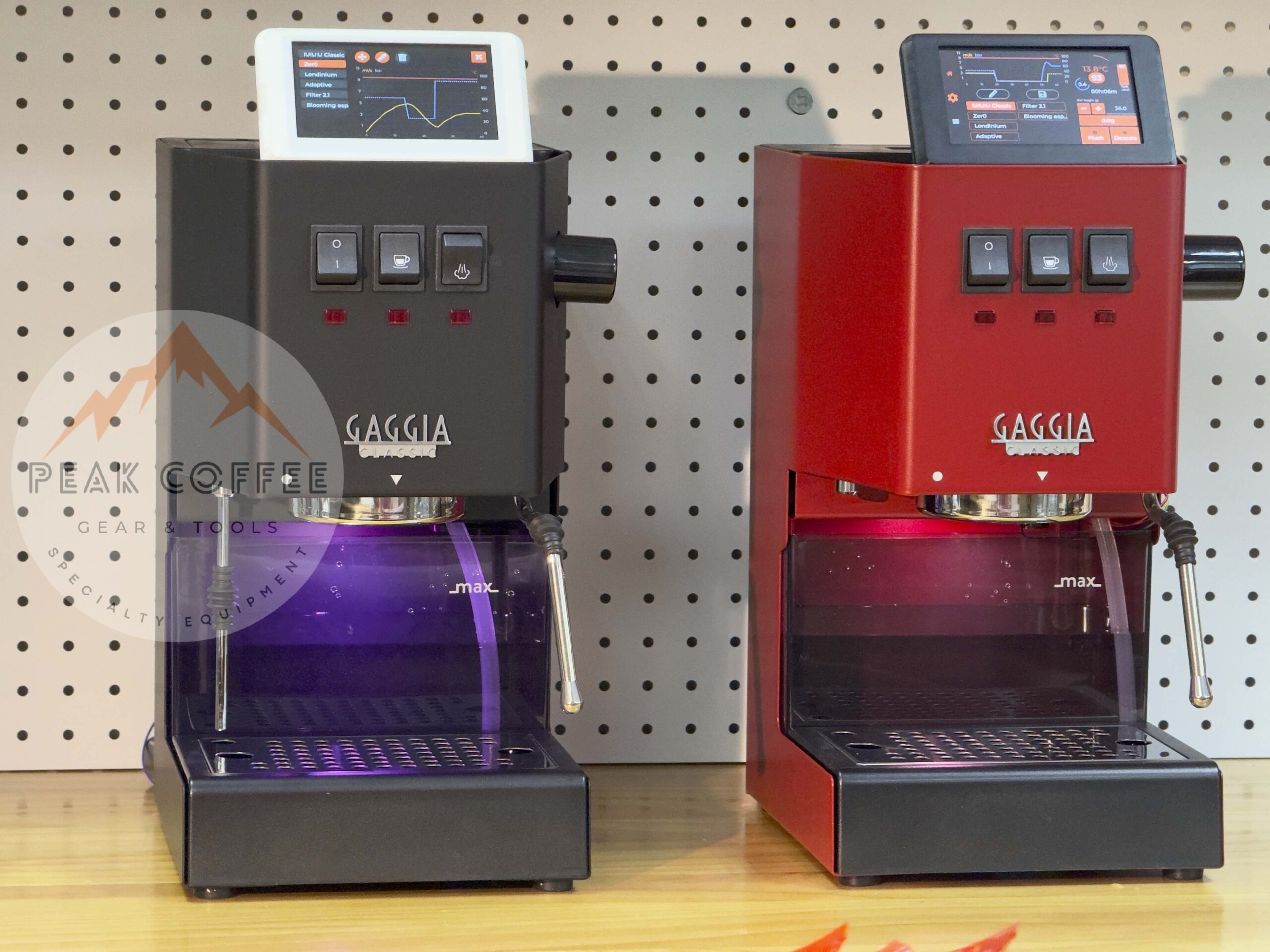

Gaggiuino for your Gaggia Classic.
Brew better: PID temperature, pressure profiling and a live brew graph. Complete kits, custom parts and a step-by-step wiring manual.
🇺🇸 US orders: tax included in the price
Made by hardware production expertsR&D, QC and factory management for Decent DE1 · Custom linear actuator for Meticulous
Shipment every weekExpedited courier from Hong Kong
Tested before dispatchBoard, screen and flasher checked
No solderingPre-crimped loom, plug-in connectors
Gaggia Classic · Classic Pro · Evo
Choose your Gaggiuino kit
Kit Set = control board, screen, sensors and the pre-made loom. Complete = Kit Set + scales and water-level modules, expedited shipping included. GEN3 has the 4.3″ touchscreen; GEN2 is the proven 2.4″ kit.
-
Product on sale
GEN3 – V4 COMPLETE KIT – NextMonday
Price range: $340 through $388
Original Gaggia Classic (pre-2019)? GEN2 Kit Set for the Gaggia Classic — $99
Custom tailor-made, Off the shelf
Six parts made to our own specification, in stock and ready to ship. Five are in every kit; the scales hub comes with the Complete kits.
All kits · PEAK exclusive

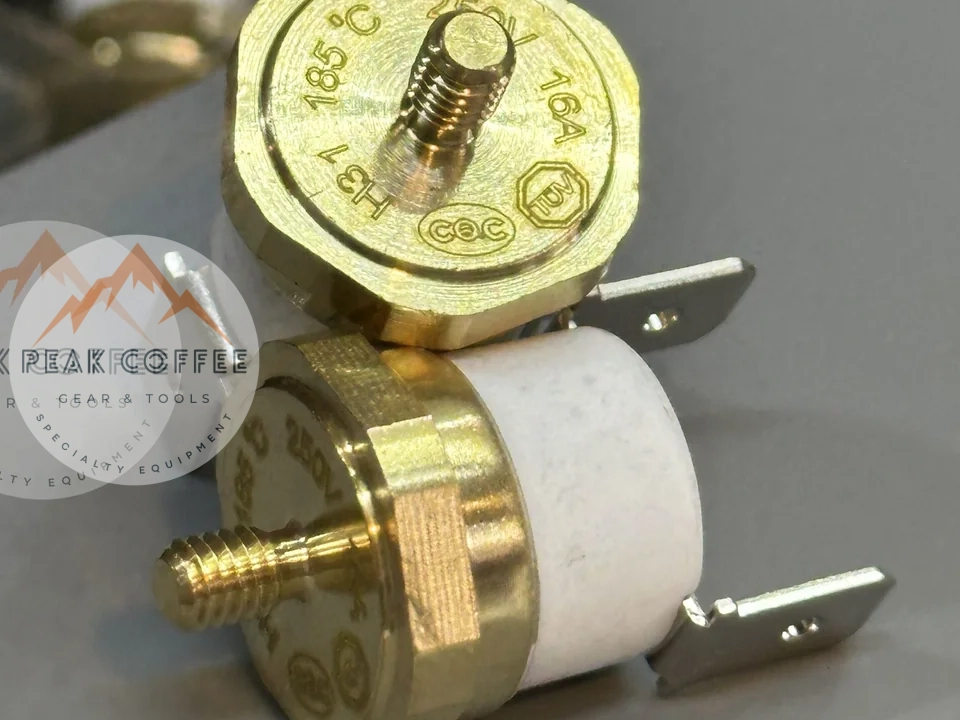

185 °C ceramic thermal fuse
Re-settable · 16 A · M4 · ceramic body
A second layer of protection on top of the machine’s own thermostat. Trips, then resets by hand instead of stranding the machine.
All kits · Custom made

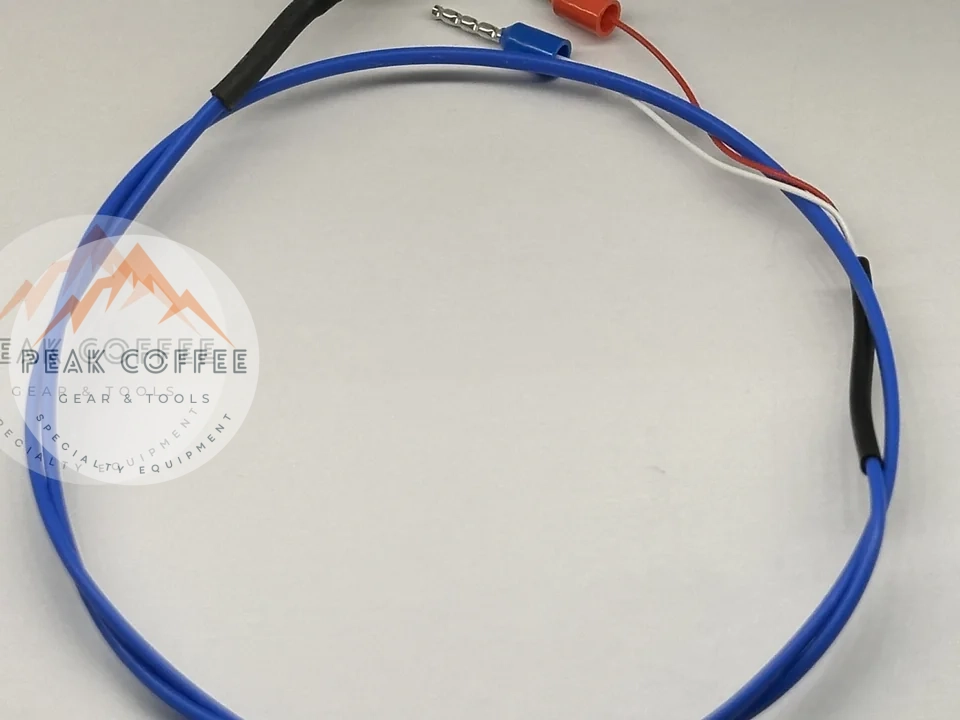

Type K thermocouple, M4 × 6 mm
Ungrounded · 6 mm thread, not 4 mm · high-temp PTFE lead
Drops straight into the stock boiler position — no adapters, no drilling.
All kits · Food grade

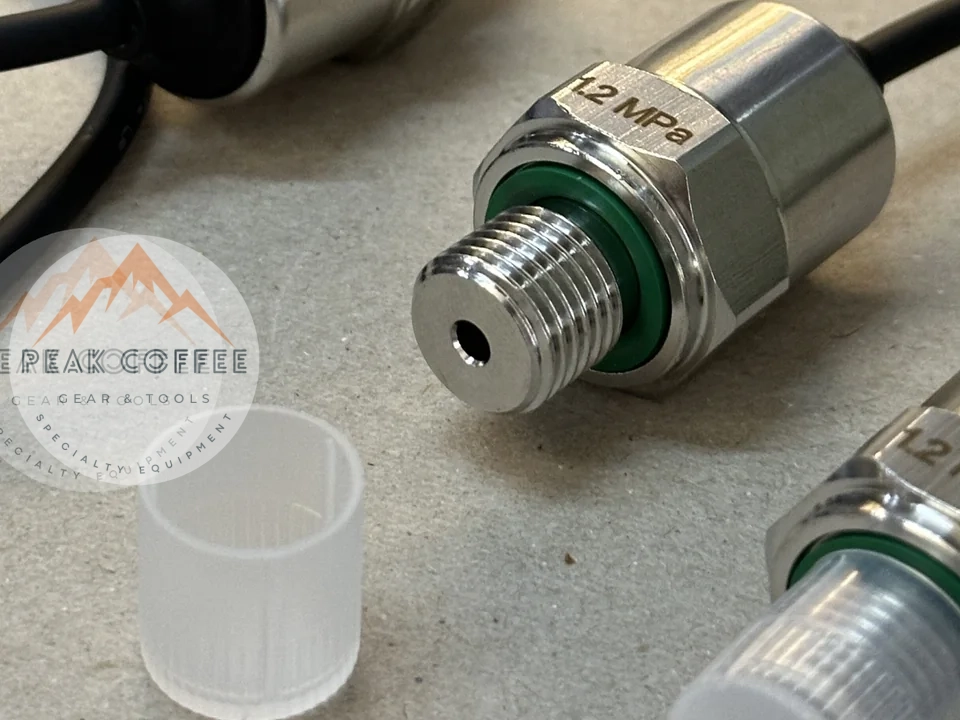

Food-grade pressure sensor
0–12 bar · G1/4 · 5 V · stainless
It sits in the brew water, so every wetted surface is food grade.
All kits · Gold plated

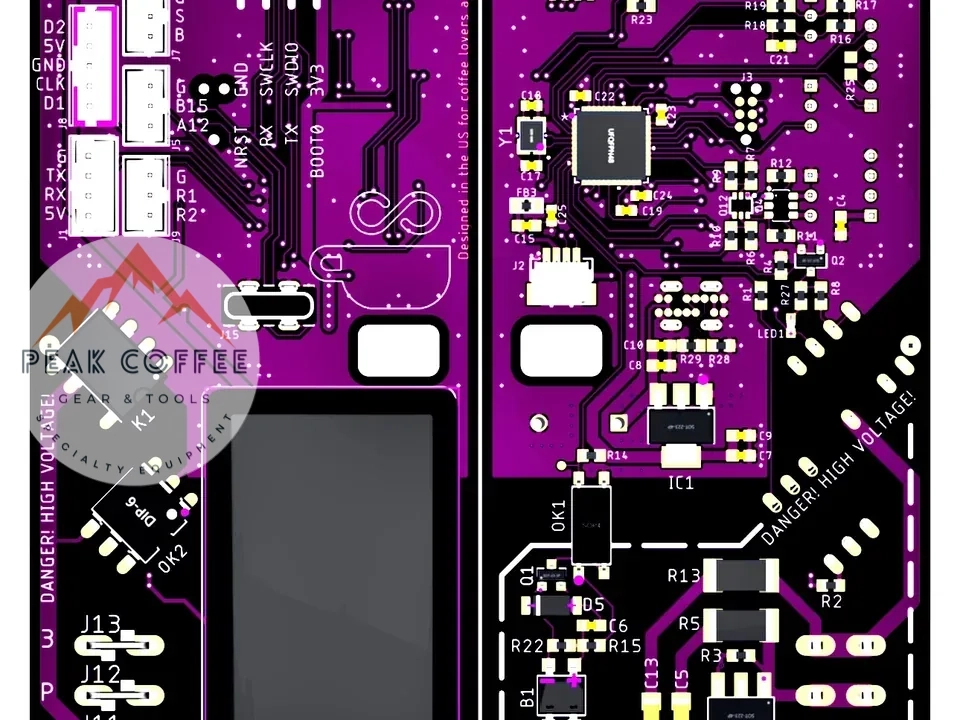

Gold-plated control board
1U gold contacts · lead-free solder · pre-flashed & tested
Gold keeps the tiny sensor signals clean, so the temperature trace stays steady instead of jumping.
All kits · Custom made

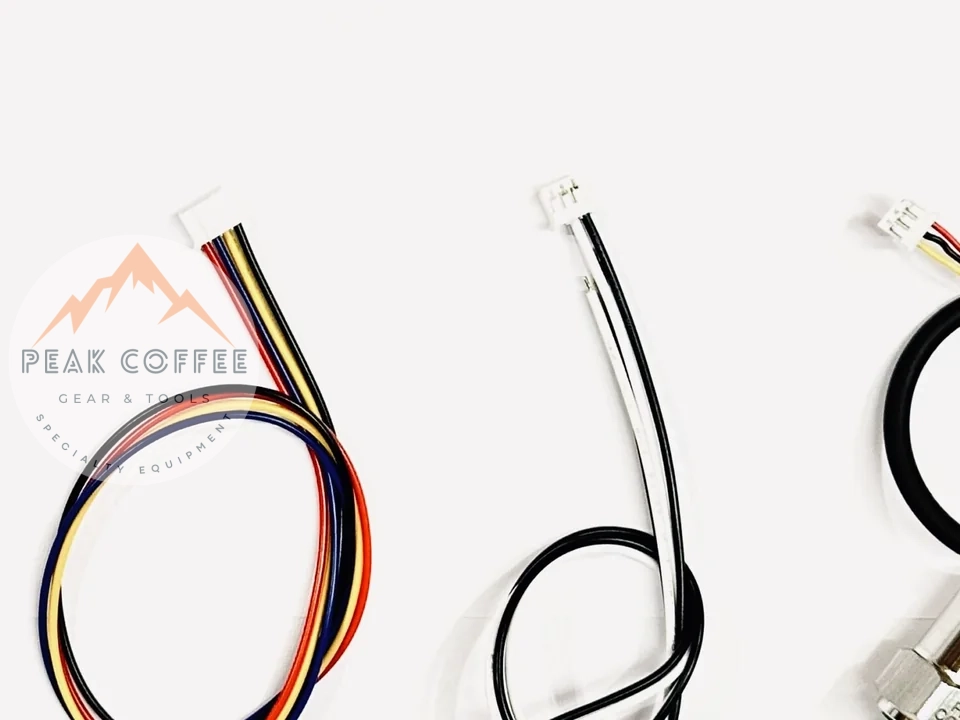

Custom cable loom
LV + HV cables · pre-crimped · 6.3 mm spades for the stock wiring
Made for the Gaggia’s own connectors, so the loom plugs in and nothing needs soldering.
Complete kits · Pre-soldered

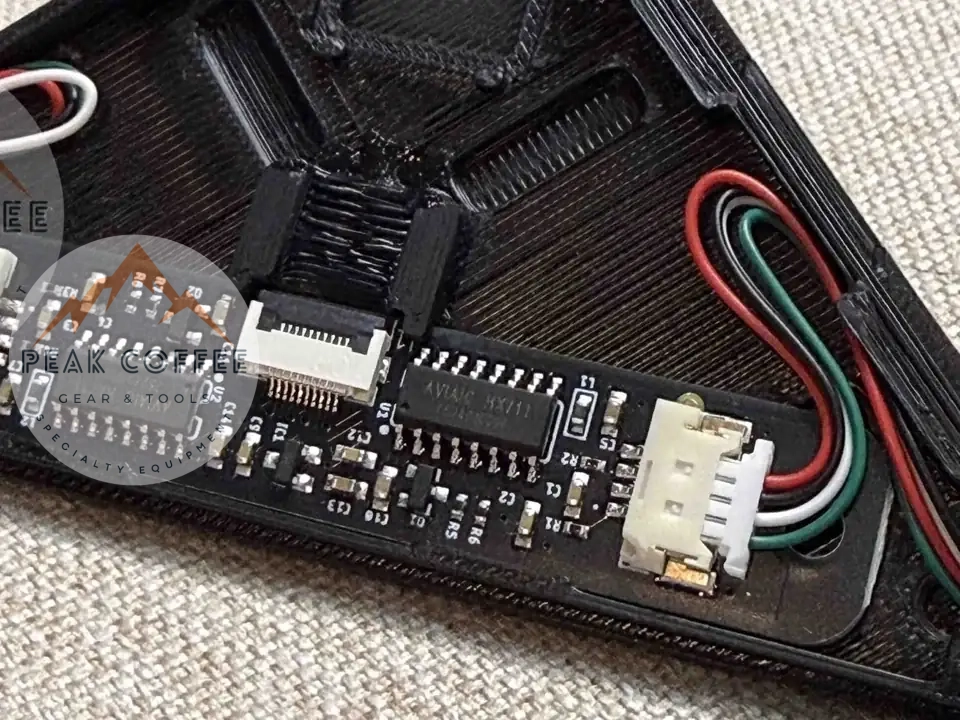

Scales converter hub
Load cells soldered · FPC cable terminated both ends
The scales plug straight in — no soldering iron needed.
